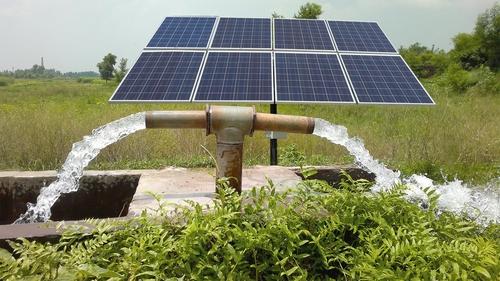

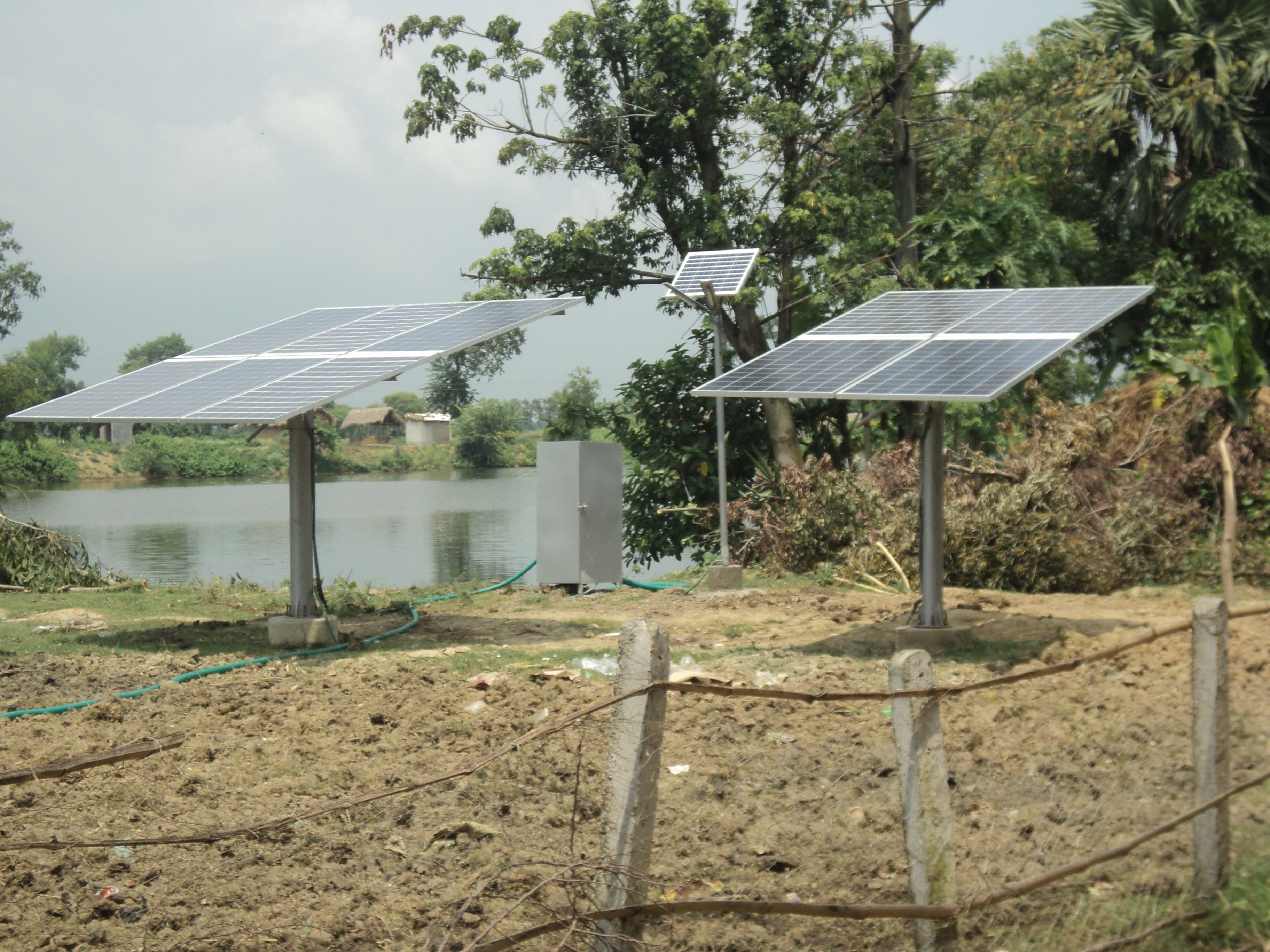

Solar Pumping System

We are backed by the knowledge of our skilled professionals, engaged in offering Solar Pumping System. This Solar Water Pumping System is used deliver drinking water to the live stocks and also to supply water for irrigation purposes. This pump is processed in tune with international standards by utilizing quality-approved parts and innovative slant. Solar pumping system use solar energy for running its processes.
  • Solar Water Pump
    +

    Our valuable clients can avail from us a broad array of Solar water Pump. This solar pump is manufactured using high quality components and ultra modern technology under guidance of our experienced team. This pump is used in irrigation systems, industrial applications and fountains. Apart from this, the offered system is available with us in varied specifications and can be customized as per the information given by our customers.

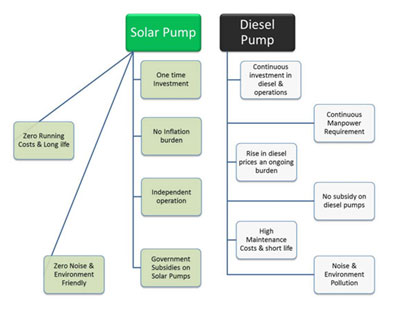

    Comparison between Jyoty Solar Pump Vs Diesel operating pump

    Features

    • High flow system for faster tank fill so that significant water output.
    • Proven motor and pump technology for long term reliability.
    • Eco friendly & don’t harm the nature.
    • Ideal for remote location where electricity is not available or availability is capital intensive.
    • Suitable for day time irrigation, continuous supply for 6-8 hours in a day.
    • MPPT-Max power point tracking system will maximize the efficiency of input power.
    • Soft start feature prevents water hammer & increase system life.
    • No battery bank required.
    • Simple installation and no required maintenance.

    Applications

    • Ground water lowering
    • Irrigation systems
    • Industrial Application
    • Drip irrigation & sprinkler
    • Tank/Cistern filling Wildlife refuge
    • Rural water supply for ranches, cabins, and cottages
    • Fountains

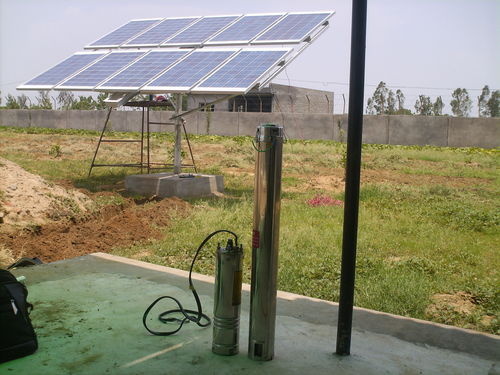

  • Solar Submersible Pump
    +

    Solar Submersible Pump is a standalone system operating on power generated by Solar Photovoltaic Panels. The power generated by Solar Panels is used for operating Solar Submersible Pump for lifting water from open well, water reservoir or tube well for irrigation and drinking water purpose.

    An intelligent pump controller (VFD) continuously monitors power available from solar PV modules and drives a high-efficiency 3-phase AC pump at variable speeds to use every watt of power available from solar and provide water through the day. The electrical energy from the entire solar array is controlled and directed by Variable Frequency Drive (VFD) and enables the connected pump to draw water from bore well.


    Range

    • 1 HP- 7.5 HP

    Solar Submersible Pump System includes

    • Submersible Pump
    • Pump Inverter with VFD
    • Solar Panels
    • Internal Cable with ON -Off Switch
    • Mounting Stand Aluminimum or Galvanize

    Features

    • Fully automatic smart pump controller with level controller and dry run protection
    • Customized design for specific water quantity and discharge head
    • Pump controller with integrated MPPT for up to 10 hours of pump operation per day
    • Approved high-efficiency SPV modules with a service life of 25 years
    • Coated SPV module mounting structure
    • No battery bank required
    • Minimum maintenance, affordable AMC on offer

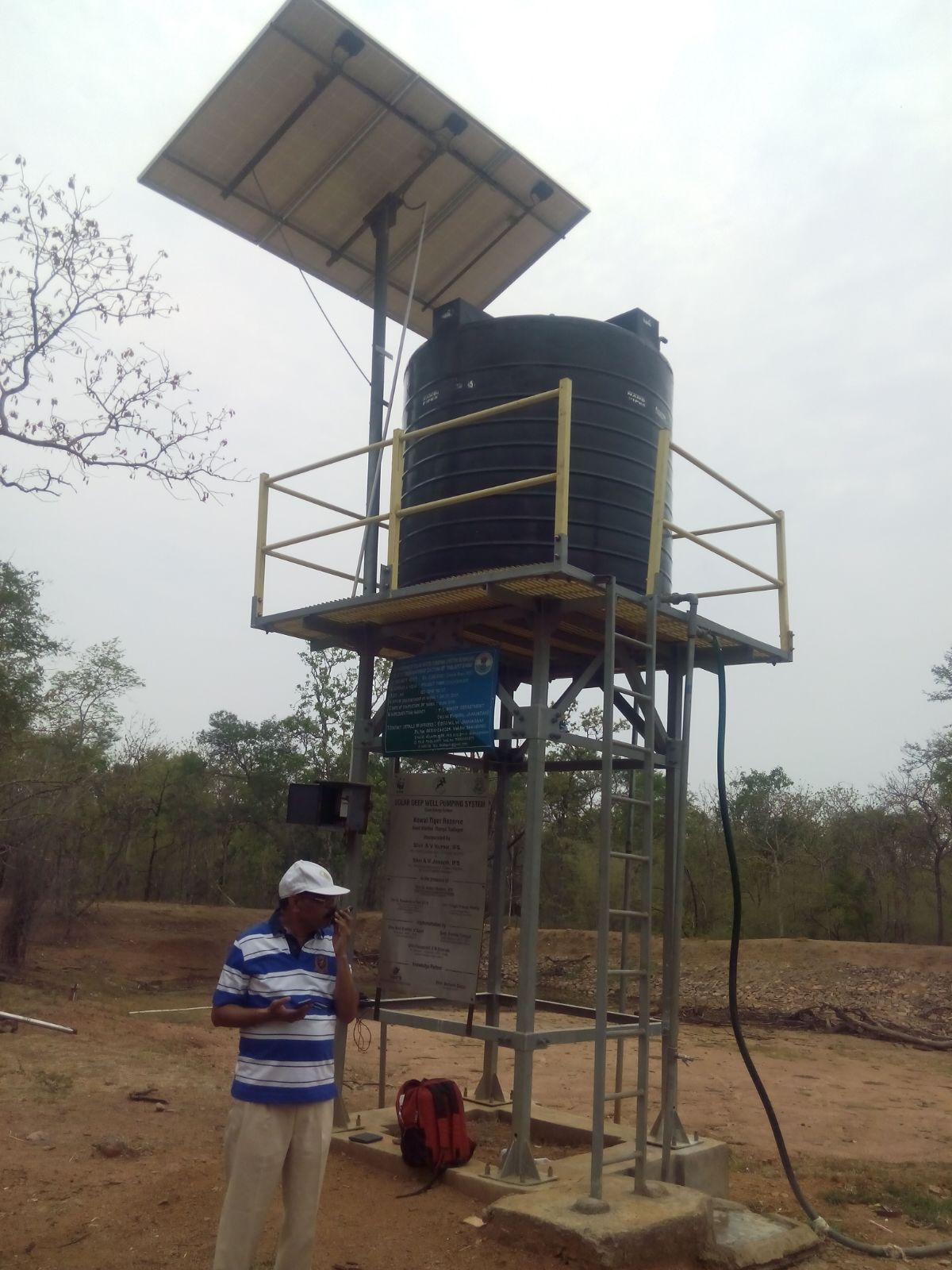

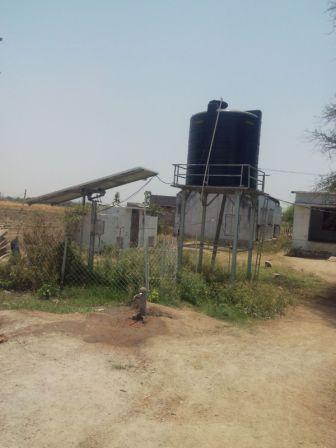

  • DC Solar Pump
    +

    Backed by the profound experience of market, we have been able to offer DC Solar Pump. The offered solar DC pumps are widely used for lifting water from open canal, lake, well, river, tank and dam. The pump sets offered by us are used in residential and commercial areas like constructions, textile chemical, steel industries and for irrigation. These pump sets are manufactured utilizing high quality raw materials. This product is well tested on various quality parameters before final dispatch. We have been able to carve a niche in this highly competitive market within a very short span of time. Also, we follow the industry standards during the installation and fabrication of the system.

    Ranges

    • 0.5 HP- 5HP

    Features

    • Dry running protection
    • High efficiency permanent
    • Fully protected outdoor equipments
    • Over and under voltage protection
    • Pump controller with integrated MPPT for up to 8 hours of pump operation per day
    • Approved high-efficiency SPV modules with a service life of 25 years
    • Coated SPV module mounting structure
